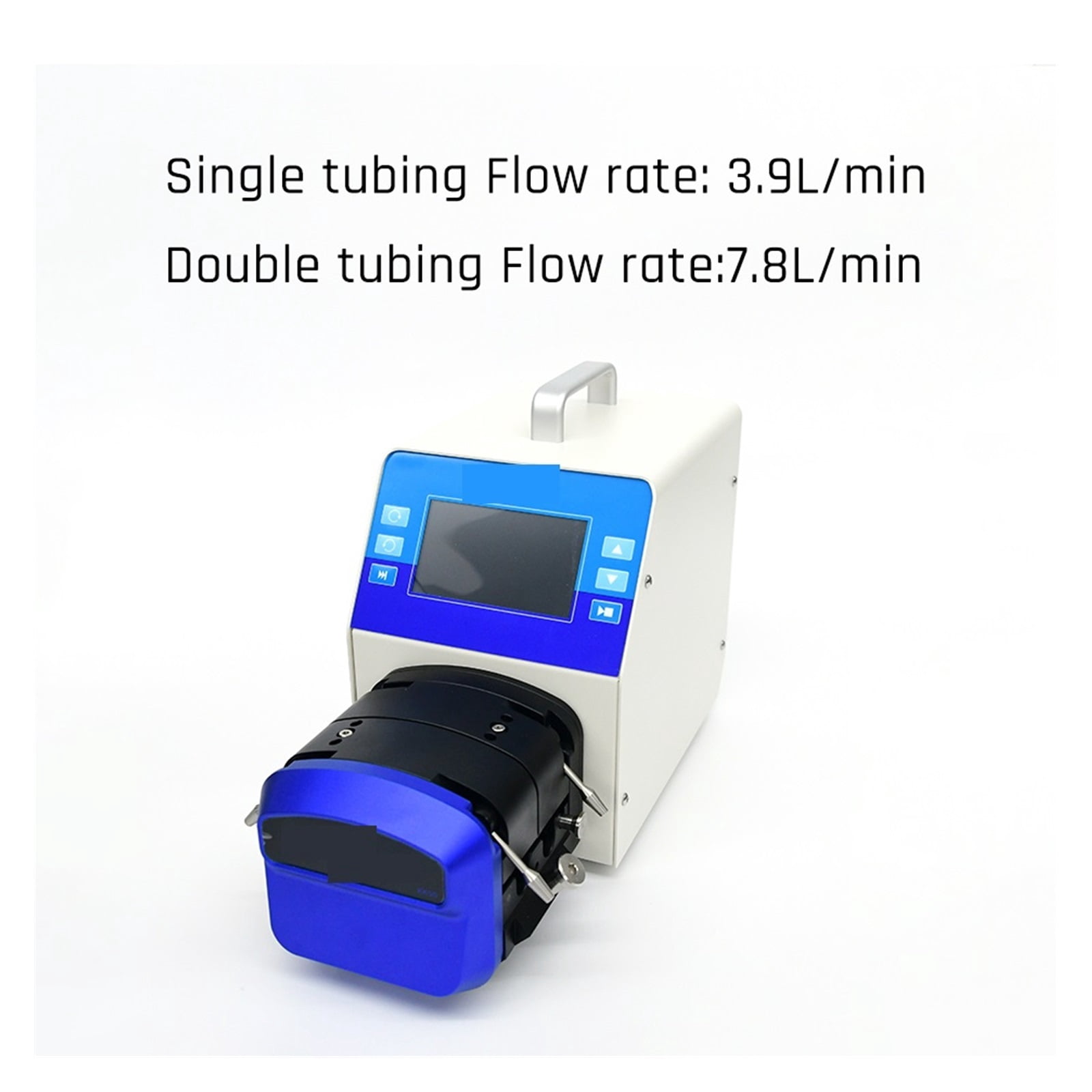

7.8L/min 600RPM AIP Peristaltic Pump Intelligent App Control Dosing Pump For Lab, Food And Beverage ,Easy to Operate

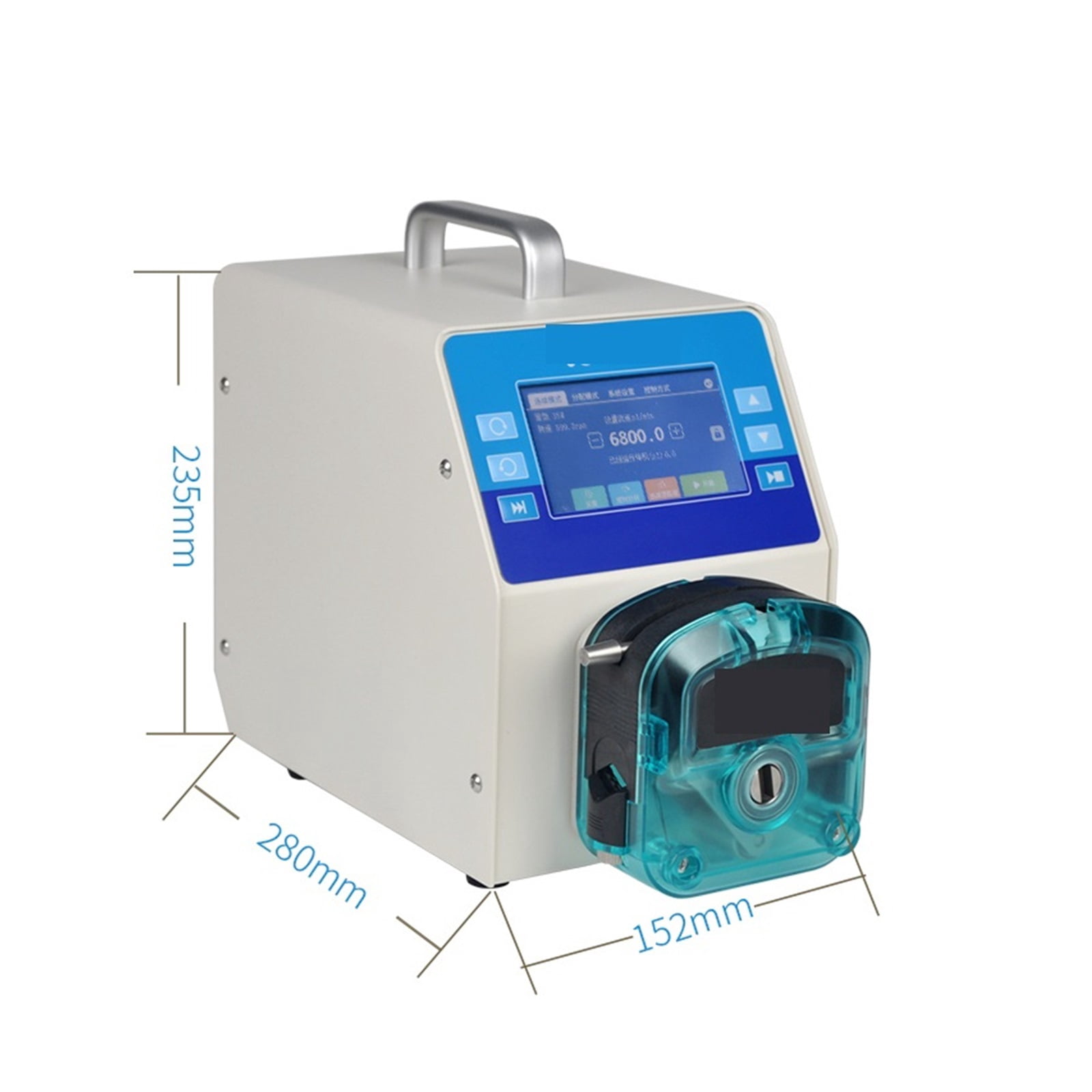

<p>AIP WiFi7.8L/Min Intelligent Peristaltic Pump</p><p>3 Kinds of Working Mode</p><p>Continuous mode</p><p>Distribution mode</p><p>Online mode</p><p>Basic Parameters</p><p>Maximum speed: 600RPM</p><p>Working temperature: 0~50 </p><p>Relative humidity: 10%-90%</p><p>Net weight: 7.7KG</p><p>Gross weight: 9KG</p><p>Size: 280*152*235 mm (L*W*H)</p><p>External analog signal control: 4-20mA, 0-5V</p><p>Display mode: 4.3 inch industrial touch screen, speed display, duration display</p><p>Control method: Thin film button, touch screen, External analog signal control, Dosing gun, External R485/CAN communication control.</p><p>Support function: Start and stop, forward and reverse, speed control, parameter memory,etc</p><p>Various Applications</p><p># Filling and dispensing</p><p># Laboratory, research institution</p><p># Food industry</p><p># Medical equipment</p><p>Flow Rate &amp; Tube Selection</p><p></p><p>Tubes</p><p>Materials</p><p>Features</p><p>Tubing Life</p><p>S Silicone</p><p>Low adsorption, good temperature resistance, not easy to aging, low precipitation, etc., chemical resistance. Corrosion performance decreases with increasing temperature. Suitable for transmission of various low corrosion(10%) Liquid.</p><p>Working temperature: -60~200</p><p>200H</p><p>B PharMed</p><p>BPT</p><p>Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides. The product is transparent and resistant to ultraviolet radiation, so it helps protect sensitive liquids.</p><p>Working temperature: -51~132</p><p>1000H</p><p>N Imported</p><p>Norprene</p><p>FDA certificate, for food and dairy product application. High temperature and corrosion resistance, aging and oxidation resistance, long-term service time.</p><p>Working temperature range(-60~-135).</p><p>1000H</p><p>Optional Pump Head</p><p>Model</p><p>Pump head type and quantity</p><p>AIPump600-KK25</p><p>KK25×1</p><p>AIPump600-KK25D</p><p>KK25×2</p><p>AIPump600-KK153</p><p>KK15 3rotors ×1</p><p>AIPump600-KK153D</p><p>KK15 3rotors ×2</p><p>AIPump600-KK156</p><p>KK15 6rotors ×1</p><p>AIPump600-KK156D</p><p>KK15 6rotors ×2</p><p>Packing List</p><p>1 ×AIP Host with tube(BPT/Silicone/Norprene tube);</p><p>1 × Power adapter (US/UK/AU/EU);</p><p>1 × Foot switch.</p><p>More Details</p><p>1.Clockwise button</p><p>2.Counterclockwise button</p><p>3.Quick empty button</p><p>4.Add button</p><p>5.Minus button</p><p>6.Start stop button</p><p>7.Activity tab</p><p>8.Inactive tab</p><p>9.Temperature display</p><p>10. status</p><p>Intelligent power off memory</p><p>When starting, keep the settings at the last power-off, giving you a comfortable operating experience.</p><p>Fast transmission rate</p><p>The external RS485 communication protocol is adopted, the transmission rate is faster than RS232, and the communication distance is longer.</p><p>1. Cooling fan</p><p>2. port</p><p>3. Liquid sensor port</p><p>4. Temperature port</p><p>5. CAN port</p><p>6. RS 485 port</p><p>7. Extension port</p><p>8. Power port</p><p>Diagram of Rear Interface</p><p>Related products in the store:peristaltic pump,dosing pump,aquarium dosing pump,lab intelligent peristaltic pump,filling machine peristaltic pump,peristaltic dosing pump,peristaltic pump liquid filling machine,lab peristaltic pump,peristaltic pump high flow,intelligent peristaltic pump,liquid filling machine,filling machine,bottle filling machine</p>

• Motor: Stepper motor
• Power: 150W Max
• Flow Range: 6000ml/min
• Power off memory function: Support
• Delivery accuracy: 0.1RPM
